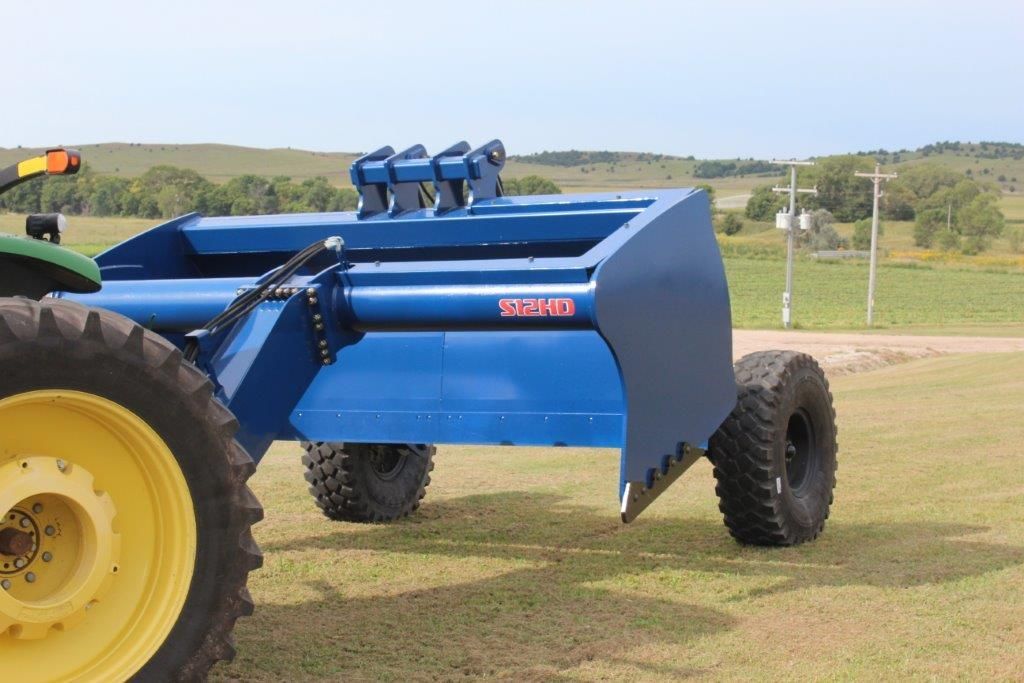

  • A blue scraper is attached to a tractor

    Slide title

    Write your caption here
    Button

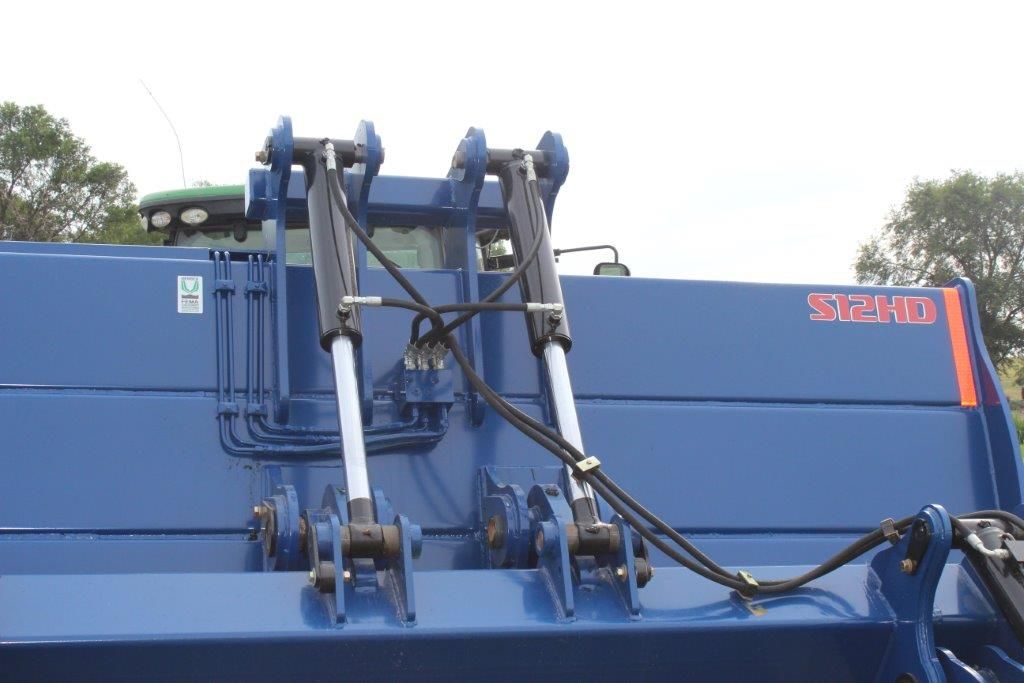

  • A blue scraper with hydraulic cylinders

    Slide title

    Write your caption here
    Button

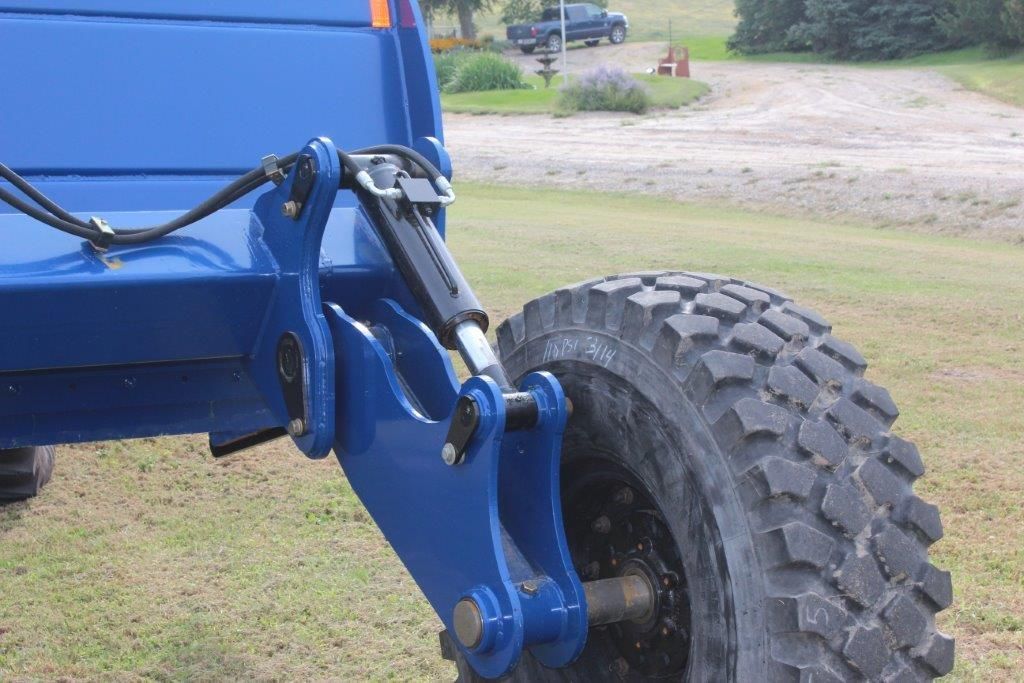

  • A blue scraper with a large tire is parked in a grassy field.

    Slide title

    Write your caption here
    Button

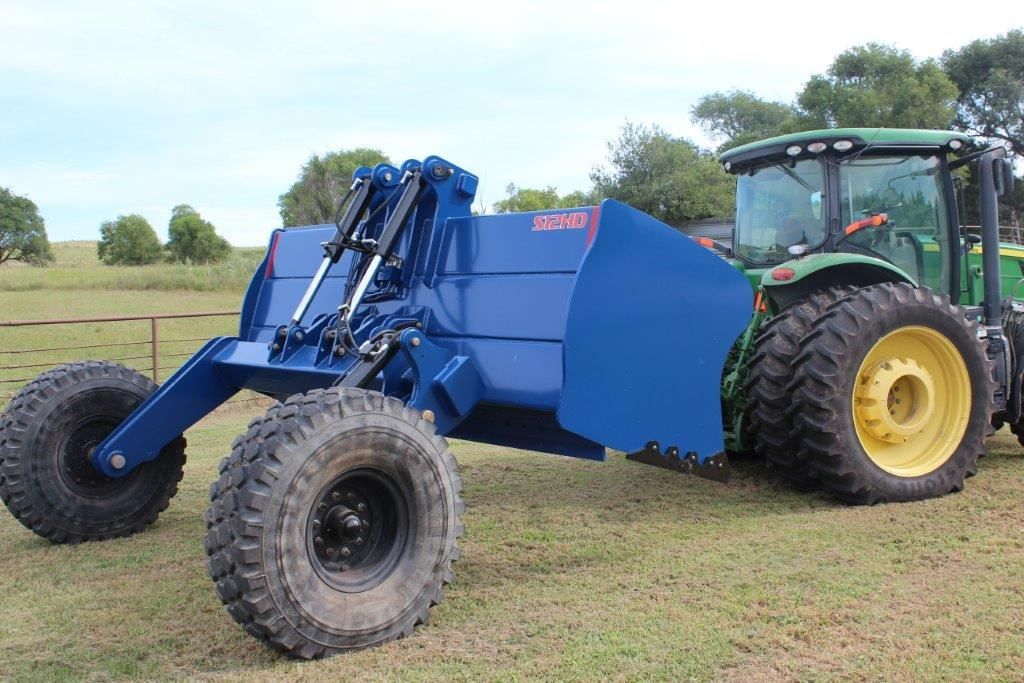

  • A blue and yellow tractor with a scraper is parked in a grassy field.

    Slide title

    Write your caption here
    Button

S SERIES SCRAPERS

  • 3/8” plate back reinforced with 1.5 x 4 inch flat
  • Tongue is ½” plate construction
  • 16.00-20 tires
  • 15,000lb – hub and spindles
  • 4 x 20 2.5 inch rod hydraulic cylinders
  • 30 to 36 inch dump height
  • 52 inch back


Weight

  • Approximately 9,000 – 20,000 lbs


Other Options:

  • Available with two or four rear tires
  • Side available in 1” or 1.5” plate
  • Rippers


S-Series Scrapers:  The Ultimate Earth Moving Solution

The S series scrapers are construction grade scrapers made for removal of large amounts of material. The heavy weight allows for deep cuts. Ideal for use as a feedlot scraper or earth moving scraper.

FEATURES/BENEFITS

  • One Inch Side Plates
  • 15,000 Lb Hub & Spindles
  • 16:00 – 20 Tires
  • 4 X 20 Hydraulic Cylinders 2.5 Inch Rods
  • 2 Inch Hydraulic Cylinder Cross Pins
  • Tilt Standard
  • 10 X 10 Square Tube Rear Axle
  • Raised Blade Height 30 Inches

APPLICATIONS

  • Building Pads for Residential or Commercial Sites
  • Maintaining Land Fills
  • Land Leveling for Field Irrigation
  • Dam Construction
  • Building Wet Land Projects
  • Road Construction
  • Maintaining Feedlots
  • Water Ways and Terrace Channels
  • Building Lagoons and Runoff Pits
